PL Corrugated Steel Pipe |
|
 |

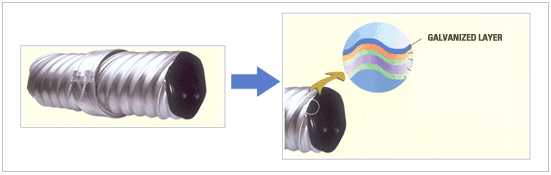

PF Corrugated Steel Pipe is equipped with poly-ethylene
flanges to connect each pipe and laminated with poly-ethylene. It
is used for sewage conduit system, reclaimed land, harbors and salty
area. The flange is one of the new technologies developed by Fixon
to connect each PE laminated pipe and guarantee 100 percent water-tightness.
¢Â Production Specification
Diameter : ¨ª150~2,400mm
Thickness : 1.6t ~ 2.7t
Daily Production Capacity : 50 tons |
| |
|
PL302 Corrugated Steel Pipe (EM Authentication) |
|
 |

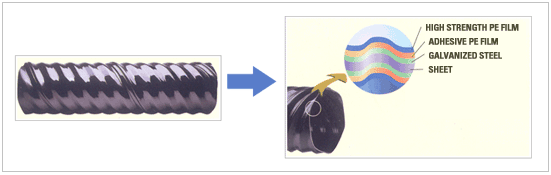

PL 301 CSP is a galvanized corrugated steel pipe
whose only side is PE-laminated. It is perfect for sewage conduit
system, reclaimed land, harbor and salty area. It provides cost-effectiveness,
durability and easy installation with your construction so that
you can save time and expenditures significantly.
¢Â Production Specification
Diameter : ¨ª300~2,400mm( ¨ª150)
Thickness : 1.6t ~ 2.7t
Daily Production Capacity : 50 tons |
| |
|
Specifications of Materials |
|
 |
- ASTM A742/A 742M-98
(Steel Sheet, Metalic Coated and Polymer Precoated for Corrugated
Steel Pipe) |
|
| |
|

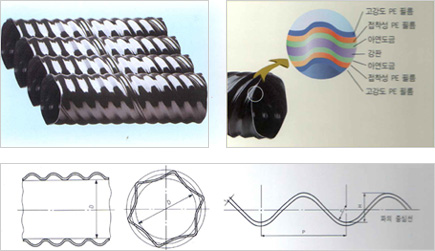

Cross Section and Dimension |
|
 |
| Mark |
Dimensions |
| Pitch(P) |
Height (H) |
Radius(r) |
| PL 0RS (Small Wave) |
38.0 |
6.5 |
7.1 |
| PL 1RS(Medium Wave) |
68.0 |
13.0 |
17.5 |
| PL 3RS(Large Wave) |
76.2 |
25.4 |
17.5 |
|
| |
|
Kinds of PL Corrugated Steel Pipes |
|
| Symbol |
Coating Type |
Coating Thickness |
| PL 301 |
Inside Coating |
Inside 0.3mm |
| PL 302 |
Inside/Outside Coating |
Inside 0.3mm, Outside 0.3mm |
| PL 503 |
Inside/Outside Differentiated Coating |
Inside 0.5mm, Outside 0.3mm
(Not produced) |
|
| |
| |
|
Production Specification |
|
| Symbol |
Diameter (mm) |
Thickness (mm) |
Length (m) |
Quantity of production |
| PL ORS (Small Wave) |
150 ~ 600 |
1.4 ~ 1.6 |
1 ~ 12 |
50 ton/day |
| PL 1RS (Medium Wave) |
300 ~ 2,400 |
1.6 ~ 2.7 |
| PL 3RS(Large Wave) |
900 ~ 2,400 |
2.0 ~ 3.2 |
|
| |
